Univariate time series forecasting with LSTM

This tutorial example presents how to perform forecasts for an univariate time series while using a LSTM neural network. In this example, we use a simple sine-like signal. Run it now in Google Colab.

Import libraries

Import the various libraries that will be employed in this example.

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from tqdm import tqdm
from pathlib import Path
from sklearn.preprocessing import StandardScaler
import torch
from torch.utils.data import DataLoader, TensorDataset

Import from pytagi

From pytagi, we need to import several classes that will be reused in this example. Notably, we import different neural network layers, a normalizer to normalize data, an exponential scheduler for decaying observation noise variances.

!pip install pytagi

Requirement already satisfied: pytagi in /usr/local/lib/python3.12/dist-packages (0.2.0)

import pytagi.metric as metric
from pytagi import exponential_scheduler
from pytagi.nn import LSTM, Linear, OutputUpdater, Sequential

Read data

The raw .csv data is saved in a dataframe using the Panda external library. The data can be found in the Github reposetory.

# Raw URL for the training data
train_url = "https://raw.githubusercontent.com/lhnguyen102/cuTAGI/main/data/toy_time_series/x_train_sin_data.csv"
# Raw URL for the test data
test_url = "https://raw.githubusercontent.com/lhnguyen102/cuTAGI/main/data/toy_time_series/x_test_sin_data.csv"

# Use !wget to download the files to your current Colab directory
print("Downloading x_train_sin_data.csv...")
!wget -q $train_url
print("Downloading x_test_sin_data.csv...")
!wget -q $test_url

# Training data
train_data_file = "x_train_sin_data.csv"
train_data = pd.read_csv(train_data_file, skiprows=1, delimiter=",", header=None)

# Test data
test_data_file = "x_test_sin_data.csv"
test_data = pd.read_csv(test_data_file, skiprows=1, delimiter=",", header=None)

Downloading x_train_sin_data.csv...
Downloading x_test_sin_data.csv...

Standardize data

Standardize data to make the training data having zero mean and unit standard deviation

scaler = StandardScaler()
train_data = scaler.fit_transform(train_data.values)
test_data = scaler.transform(test_data.values)

Create dataset using sliding windows

We obtain (input, output) samples using sliding windows

# Sliding_window function
def create_dataset_sliding_window(data, look_back):
    dataX, dataY = [], []
    for i in range(len(data)-look_back-1):
            input = data[i:i+look_back]
            output = data[i+look_back]
            dataX.append(input)
            dataY.append(output)
    return np.array(dataX), np.array(dataY)

input_seq_len = 10
batch_size = 8

# Create training dataset
trainX, trainY = create_dataset_sliding_window(train_data, look_back = input_seq_len)
trainX = torch.as_tensor(trainX, dtype=torch.float32)
trainY = torch.as_tensor(trainY, dtype=torch.float32)
train_ds = TensorDataset(trainX, trainY)
train_loader = DataLoader(train_ds, batch_size=batch_size, shuffle=True)

# Create test dataset
testX, testY = create_dataset_sliding_window(test_data, look_back = input_seq_len)
testX = torch.as_tensor(testX, dtype=torch.float32)
testY = torch.as_tensor(testY, dtype=torch.float32)
test_ds = TensorDataset(testX, testY)
test_loader = DataLoader(test_ds, batch_size=batch_size, shuffle=False)

Define the neural network architecture

We use 2 LSTM layers following by a linear layer (or fully connected layer)

net = Sequential(
    LSTM(1, 20, input_seq_len),
    LSTM(20, 20, input_seq_len),
    Linear(20 * input_seq_len, 1),
)
# net.to_device("cuda")
net.set_threads(1)
out_updater = OutputUpdater(net.device)

Training the neural network

The training set is used to optimize the parameters of the LSTM neural network. In this example, the model is trained until it reaches the maximum number of epochs.

mses = []
num_epochs = 50
pbar = tqdm(range(num_epochs), desc="Training Progress")
sigma_v = 1             # Upper bound for the standard deviation for the observation noise (the starting value for the scheduler)
std_obs_noise = 0.3     # Actual standard deviation for the observation noise

for epoch in pbar:

    # Decaying observation's variance
    sigma_v = exponential_scheduler(
        curr_v=sigma_v, min_v=std_obs_noise, decaying_factor=0.99, curr_iter=epoch
    )
    var_y = np.full(
        (batch_size,), sigma_v**2, dtype=np.float32
    )

    for x, y in train_loader:
        # Feed forward
        m_pred, _ = net(x.numpy().flatten())

        # Update output layer
        out_updater.update(
            output_states=net.output_z_buffer,
            mu_obs=y.numpy().flatten(),
            var_obs=var_y,
            delta_states=net.input_delta_z_buffer,
        )

        # Feed backward
        net.backward()
        net.step()

        # Training metric
        pred = scaler.inverse_transform(m_pred.reshape(-1,1))
        obs = scaler.inverse_transform(y.reshape(-1,1))
        mse = metric.mse(pred, obs)
        mses.append(mse)

    net.reset_lstm_states()
    # Progress bar
    pbar.set_description(
        f"Epoch {epoch + 1}/{num_epochs}| mse: {sum(mses)/len(mses):>7.2f}",
        refresh=True,
    )

Epoch 50/50| mse:    0.17: 100%|██████████| 50/50 [00:25<00:00,  1.98it/s]

Forecast on the test set

We perform recursive 1-step ahead forecasts on the test set and then proceed with un-standardization of the data in order to retreive the original scale of the raw data.

mu_preds = []
var_preds = []
y_test = []

for x, y in test_loader:
    # Predicion
    m_pred, v_pred = net(x.numpy().flatten())

    mu_preds.extend(m_pred)
    var_preds.extend(v_pred + sigma_v**2)
    y_test.extend(y)

mu_preds = np.array(mu_preds)
std_preds = np.array(var_preds).flatten() ** 0.5
y_test = np.array(y_test)

# Unstandardization
mu_preds = scaler.inverse_transform(mu_preds.reshape(-1,1))
y_test = scaler.inverse_transform(y_test.reshape(-1,1))
std_preds = std_preds*scaler.scale_

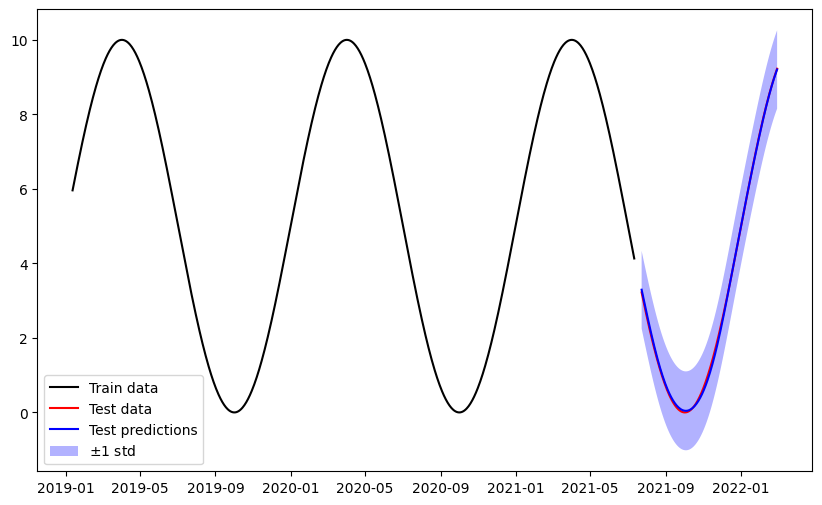

Plot test predictions

Plot the training data, test data, test predictions along their uncertainty in the original space.

# Download Data
train_data_time_url = "https://raw.githubusercontent.com/lhnguyen102/cuTAGI/main/data/toy_time_series/train_sin_datetime.csv"
test_data_time_url = "https://raw.githubusercontent.com/lhnguyen102/cuTAGI/main/data/toy_time_series/test_sin_datetime.csv"
!wget -q $train_data_time_url
!wget -q $test_data_time_url
train_sin_datetime = "train_sin_datetime.csv"
test_sin_datetime = "test_sin_datetime.csv"

# Training data time
train_data_time = pd.read_csv(train_sin_datetime, skiprows=1, delimiter=",", header=None)
train_data_time = pd.to_datetime(train_data_time[0])
time_train = train_data_time.values.flatten()[input_seq_len+1:]
train_data = scaler.inverse_transform(train_data[input_seq_len+1:].reshape(-1,1))

# Test data time
test_data_time = pd.read_csv(test_sin_datetime, skiprows=1, delimiter=",", header=None)
test_data_time = pd.to_datetime(test_data_time[0])
time_test = test_data_time.values.flatten()[input_seq_len+1:]

# Plot
plt.figure(figsize=(10, 6))
plt.plot(time_train, train_data, color='black', label="Train data")
plt.plot(time_test, y_test, color='red', label="Test data")
plt.plot(time_test, mu_preds, color='blue', label="Test predictions")
plt.fill_between(
                time_test.flatten(),
                mu_preds.flatten() - std_preds.flatten(),
                mu_preds.flatten() + std_preds.flatten(),
                facecolor="blue",
                alpha=0.3,
                label=r"$\pm 1$ std",
            )
plt.legend()
plt.show()
